MIDACO Excel Add-In
Download MIDACO 6.0 (limited) for Excel
|
|
|
| Step 1 | Download and unzip "MIDACO.zip" |
| Step 2 | Store the unzipped "MIDACO" folder directly under "C:\" |
| Step 3 | Open the "MIDACO" folder located at "C:\MIDACO" and open "example.xlsx" |
| Step 4 |
Within Excel, click File -> Open and select "Midaco.xlam" |
|
Alternatively: Just Drag & Drop "Midaco.xlam" into active Excel session |
|
| Step 5 |
Enable Macros if prompted by Excel |
| Step 6 |
Open MIDACO-Solver Add-In from the Excel Ribbon |
| Step 7 |
Press "Run MIDACO Solver" in the MIDACO-Solver User Form |
|
Screenshot (multi-objective example) |
|
Example problems
| Problem Type | Description | Example (zipped) |
Screenshot |
|

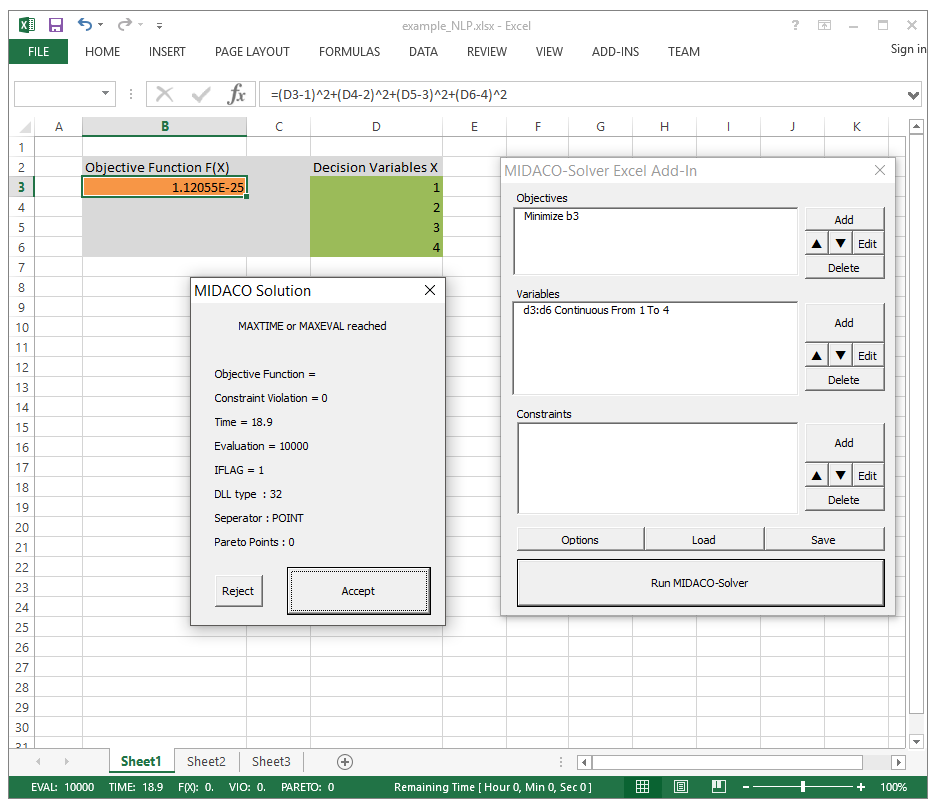

NLP |
Continuous variables |  |
|
|
NLPc |

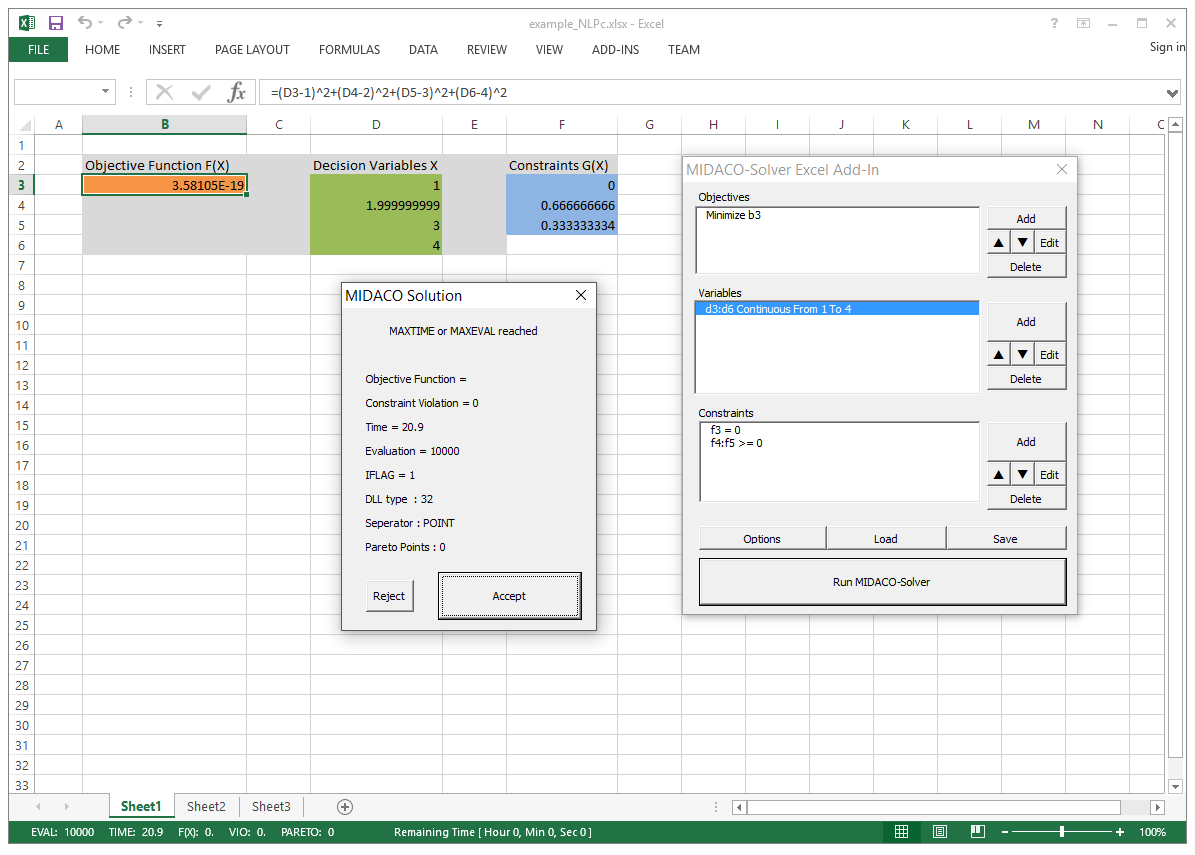

NLP with constraints | example_NLPc.xlsx |  |
|
IP |
Integer variables | example_IP.xlsx |
 |
|
IPc |
IP with constraints | example_IPc.xlsx |
 |
|
MINLP |
Mixed variables | example_MINLP.xlsx |  |
|
MINLPc |
MINLP with constraints | example_MINLPc.xlsx |  |
|
MO |
Multiple Objectives |
|
|
|
Benchmark results for problems with up to
thousands of variables can be found here
|
|||
|
Note, a MIDACO run in Excel can be stopped at any time by the user by pressing one of the following keys, depending on the Excel version:
Fn+b ( works with most Excel versions ) Fn+p CTRL+break CTRL+pause ESC
|
|||
Any problems running MIDACO? Please click here or contact us.
